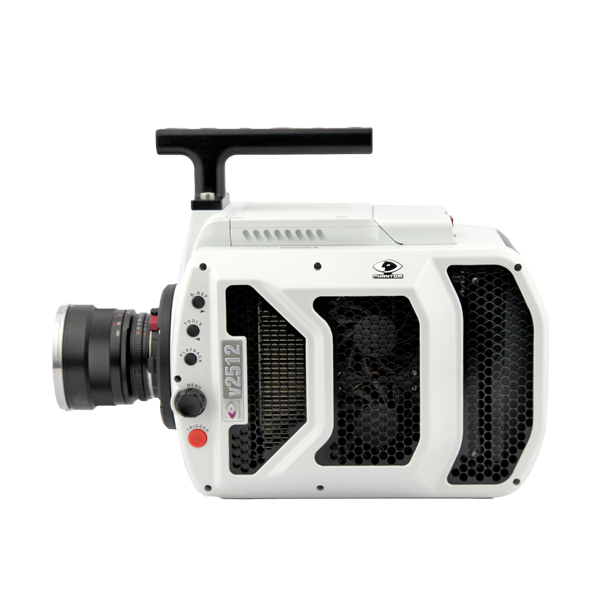

PHANTOM V2512 Ultrahigh-Speed Camera (25700FPS, Mono; 72GB)

Imaging:

Sensor type: CMOS

Maximum resolution: 1280x800

Pixel size: 28 µm

Bit depth: 12-bit

Sensor size: 35.8 mmx22.4 mm

ISO daylight: 32,000D;

ISO tungsten: 100,000T

Exposure index: 32,000-160,000 (mono)

Frame rates & exposure:

Frame rate: 25,700 FPS at max resolution 1280x800 pixels

Maximum FPS: 663,280 at 128x16; 1,000,000 at 256x32 with FAST option

Minimum FPS: 100

CAR increments: 640x8

Minimum exposure: 1 µs standard, 265 ns with FAST option (export controlled)

Exposure feature: Auto-Exposure

Memory:

Memory: 72 GB high-speed internal RAM

Record times: 7.6 seconds at maximum frame rate, 12 bits, 1280x800 resolution and into maximum internal memory

Power:

AC power: 100-240VAC, 280W

Voltage range: 20-28V

Power consumption: max 230W

Ships standard with:

Power supply

Ethernet cable

Capture cable

Phantom PCC software

Getting Started Guide

Datasheet

UHS Series Manual

CineMag Compatible Mechanical Drawing

Non-CineMag Compatible Mechanical Drawing

Spectral Response Curve
