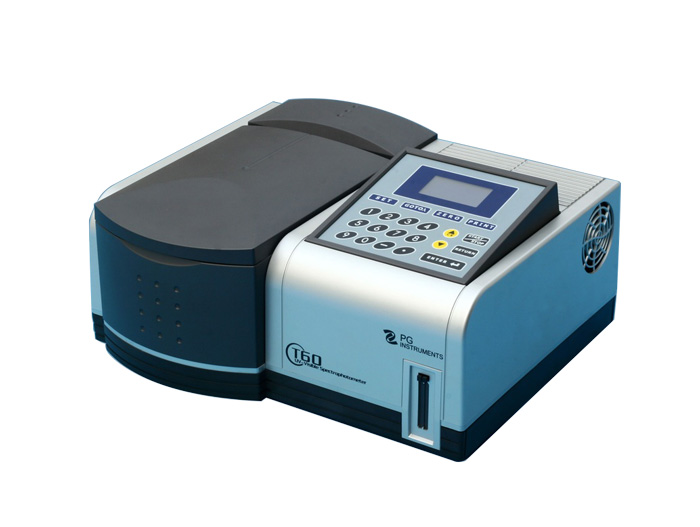

PGinstruments T60U UV-Visible Spectrophotometer

- Optical system: Split beam ratio
- Scan speed: Selectable
- Wavelength range: 190 -1100nm
- Wavelength: accuracy ±1nm
- Wavelength: reproducibility ≤ 0.2nm
- Spectral bandwidth: 2nm
- Photometric mode: Transmittance, Absorbance, Energy
- Photometric range: -0.3-3.0Abs
- Photometric accuracy: 0.002A (0-0.5A), 0.004A (0.5 -1A) ; 0.3%T (0 -100%T)
- Photometric reproducibility: 0.001A (0 - 0.5A), 0.002A (0.5 -1A); 0.15%T (0 -100%T)
- Photometric noise: 0.001A (500nm) 30min warm-up
- Baseline flatness: 0.002A (200 -1000nm)
- Baseline stability: 0.001A/h (500nm,0Abs); 2hr warm-up
- Stray light: ≤ 0.05%T (220nm Nal, 340nm NaNO2)
- Standard Functionality: Photometric Measurement
(Quantitative, Multi-wavelength, Measurement Spectrum and Kinetic measurements with program cards)
- Detector: Silicon photo diode
- Light source: Tungsten Halogen and Deuterium arc lamps
- Display: Digital LCD display
- Printer: Mini Printer
- PC Interface: RS232
- Software support: Local and UV-Win
- Power supply: Switch mode 95 - 250VAC 50 - 60Hz
- Weight: 11kg
- Dimensions: 476(mm), 362(mm), 225(mm)
Supplied Units:
1 x Certificate of conformity
1 x Power cord
1 Pair of quartz cells
1 x Instruction manual
1 x Quantitative program card
1 x Dust cover
1 x Black block for dark current correction
1 x Packing list
1 x Fuse (2A)
