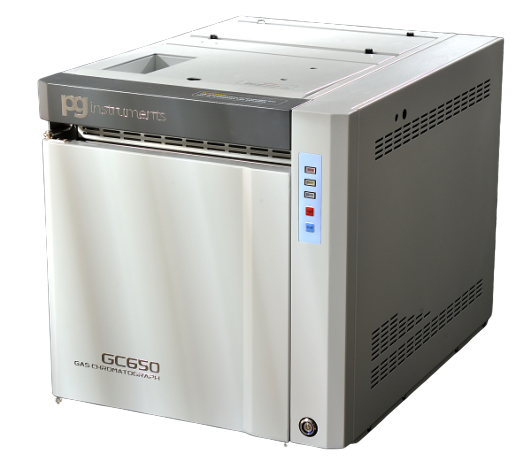

PGinstruments GC650 Gas Chromatograph

1.Column Oven
- Inner volume: 16.25 liter (250mm W* 260mm D*250mm H)
- Temperature Range: Ambient to 400℃
- Heating Rate: About 2.3 minutes 50℃ to 300℃
- Cooling Rate: About 6 minutes 300℃ to 50℃
- Run Time: Automatically computed to 999.9 minutes by 0.1 minute increments
- Temp. Programming: 30 Step
2. Pneumatics (IPC Module)
- IPC pressure range 0 to 100psi
- IPC flow range 0 to 450mL/min
- Pressure resolution 0.01psi
- Flow resolution 0.01mL/min
- Support IPC Channels Up to 20, for inlets, detectors or auxiliary gases (including pressure channel)
- Pressure/flow programming steps up to 5 steps
