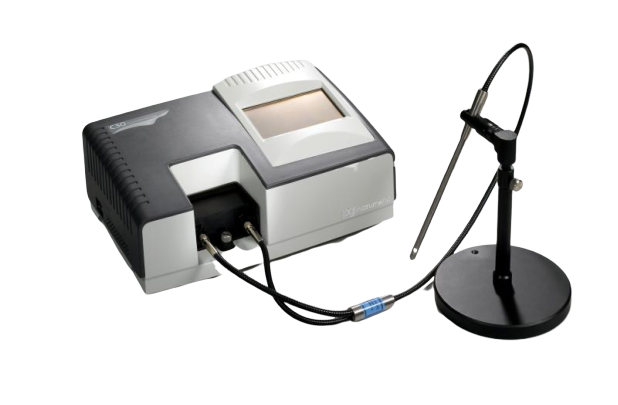

PGinstruments C30M Portable Spectrometer (Using the C30M Spectrometer with Spectroquant Reagent Test Kits)

Using the C30M Spectrometer with Spectroquant® Reagent Test Kits
- Spectroquant® test kits can offer an analytical solution for the following parameters by means of 130 different test kits:
+ Drinking Water
+ Surface Water
+ Process Water
+ Municipal or Industrial Wastewater
+ Beverages
+ Disinfectant control
- Light Source: Convergent tungsten lamp with 7000hr lifespan.
- Measurement
+ Workspaces Spectrum
+ Quantitative
+ Kinetics
+ Photometric
- Optical System: Polychromatic with concave holographic grating
- Detector: CCD Sony ILX511 2048 Pixels
- Sampling Accessories
+ Fibre Dip Probe with 10mm and 20mm pathlength tips
+ Rectangular Cuvette Holder
+ Cylindrical Test Tube Holder
- Power supply: Built-in re-chargeable battery with 5 hr usage
- Printer: Micro printer (optional)
- Operating system: Windows Embedded CE 6.0 with 2GB Flash Memory
- Input/display: 320 x 240 True Colour TFT Touch Screen
- Specifications
+ Wavelength range 380nm – 800nm
+ Wavelength resolution 0.4nm
+ Spectral bandwidth 4±0.8nm
+ Wavelength accuracy ±1.0 nm
+ Wavelength repeatability ≤ 0.1nm
+ Baseline flatness ±0.005Abs
+ Noise ≤ 0.5%
+ Drift ≤ 1.0%
+ Stray light ≤ 0.5%
+ Photometric accuracy ±1.0%
+ Photometric repeatability ≤ 0.3%
- Dimension: 280 x 170 x 110mm
- Environmental temperature: Operating environment 5-30˚C; Storage environment -20-55˚C
