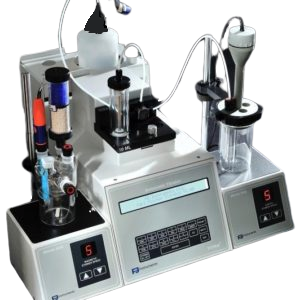

PGinstruments Automatic Titration Auto-Titration & KF Analysis

- Principle: Volume determination by equivalent point, end point or pH STAT
- Control: Micro-Processor based
- mV Range: ± 3200mV
- Accuracy: +/- 0.1mV (+/- 0.0016pH)
- Amplifier Input Impedance: >1012 Ohms
- Burette Resolution: 1/5000 for 5ml, 1/10000 for 10ml, 1/50000 for 25ml
- Filing Time: <20S
- Keyboard: Alphanumeric splash-proof polyester soft keys.
- Titration Head: Manual Stand with swivelling arm
- Stirrer System: Microcontroller based variable speed, high torque vortex stirrer with
digital indicator. (Magnetic Stirrer Optional)
- Sensors:
+ Electrodes for Potentiometric titration (pH, Ion, Redox, Argentometric)
+ Any Combination Electrode
+ Differential Electrode System comprising sensing (indicator) Electrode
with various adaptors such as BNC connector, and Reference Electrode with 4mm Connector
+ Electrode for Karl Fischer with BNC/TNC Connectors
+ Temperature Sensor.
- Calibration: 3-point Calibration with entered buffer values and standardisation
with pH 7 Buffer
- End Point Detection:
+ Potentiometric
+ Voltametric
+ Thermometric & Photometric
- Cut-off Criteria:
+ Volume
+ End Point
+ mV/pH
- Analysis Methods · Titrations:
+ Acid -Base
+ Non-aqueous
+ Redox
+ Precipitation
+ Complexometric
+ Back Titration
+ Karl Fischer
- Results & Concentration Units:
+ Molarity
+ % Assay (wt)
+ % Volume (ml)
+ ppm, mg/l, mg/g, g/l, meq/l, mol/kg, TAN and TBN for Oil Sample
- Method Storage: 50 methods with Parameters
- Titrant Molarity Storage: 20 Values
- Report Format:
+ Method Parameters
+ Titration Analysis Report
+ Titration Analysis Condensed Report
+ Titration Data Table
+ Titration Graphic Report
+ Micro Litre v mV
+ Micro Litre v First and/or Second Derivative
+ Micro Litre v Time
+ Auto Evaluation Report
+ Statistics Report
+ End Point Titration Report
+ Calibration Report
- Input/Output peripheral Interface:
+ Parallel Port for Printer
+ Serial Ports for Balance, Auto-Sampler and PC
- Power: 110V/ 230V 50Hz/60Hz
- Environmental Conditions for Operation:
+ Laboratory Use
+ Temperature Ambient to 45°C
+ Humidity 5 - 90% Non Condensing
