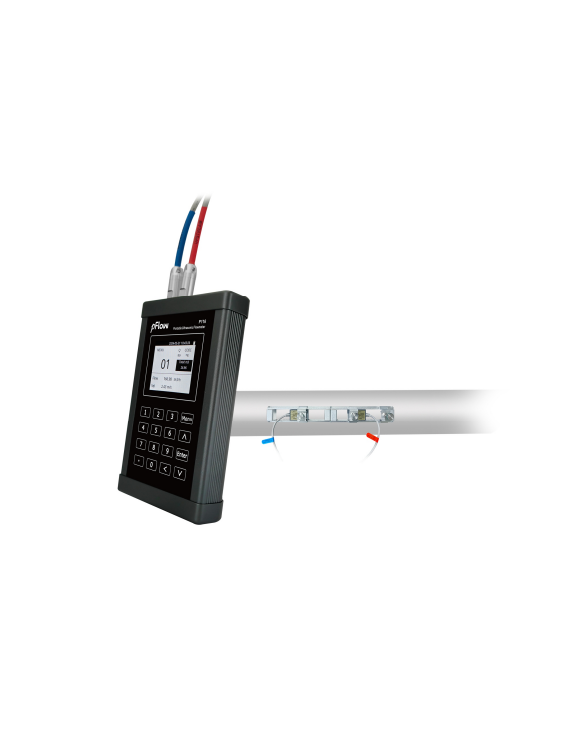

Pflow P116 Ultrasonic Flow Meter (0.03 ~ 16 ft/s)

Flow range:

(0.03 ~ 16) ft/s

(0.01 ~ 5) m/s

Accuracy: ±1.0% of measured value.（0.5 m/s～5 m/s）

Repeatability: 0.2%.

Pipe Size: 1" ~ 32” (25mm～800mm)

Pipe Material: Carbon Steel、Stainless Steel、PVC

Measurement medium: Water

Function Specifications

Communication: RS485, Support MODBUS RTU, FUJI protocol.

Output

Analog output: 4 ~ 20 mA, ( max load 500 Ω ).

Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ).

TF card

Storage: 16GB (To prevail in kind)

Max: 1000 files

Interval: 1 ~ 60 seconds

Power Supply: 10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ).

Keypad: Tactile Keys

Display: 2.8" TFT black and white screen 240×320, with backlight LCD display.

Temperature

Transmitter: 14°F to 122°F (-10℃~ 50℃)

Transducer: 32°F to 176°F (0℃~ 80℃,standard )

Humidity: 0 ~ 99% RH, non-condensing.

Physical Specifications

Transmitter: NEMA13 ( IP54 ).

Transducer

Encapsulated design, IP68

Standard cable length: 5m

Weight

Transmitter: approximately 0.7kg

Transducer: (including transducer rail): 1.2kg
