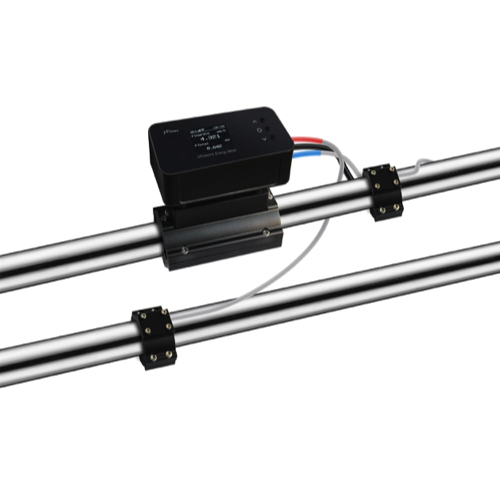

Pflow E3 Ultrasonic Energy Meter (±0.03m/s ~ ±5m/s)

Flow range: ±0.098ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s)

Accuracy: Class 2

Pipe size: DN20 DN25 DN32 DN40 DN50 DN65 DN80

Fluid: Water

Pipe material: PVC, Carbon Steel, Stainless Steel, Copper

Outputs: Analog output:4~20mA, max load 750Ω.

Communication interface: WIFI(standard), TTF/RS485(optional), Cannot be used at the same tine; Support FUJI protocol and MODBUS protocol

Power supply: 10~36VDC/500mA

Temperature:

Transmitter:14℉~122℉(-10℃~50℃)

Transducer measurement medium:32℉~140℉(0℃~60℃)

Humidity: Up to 99% RH,non-condensing

Analog output:4~20mA, max load 750Ω.

Transmitter: PC/ABS

Keyboard: 3 touch Keys

Display: 1.44'' LCD

Protection Rate: Ip54

Cable Lenght:

Power cable: standard lenght 2m

Temperature cable: 3.0m Ф5 6 Core,standard lenght 2m

PT1000: 2*PT1000 Clamp-on or insertion temperature sensor 0~100℃（32〜212℉）
