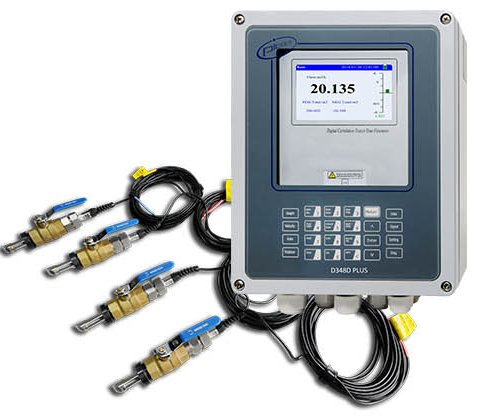

Pflow D348D Multi-path Ultrasonic Flowmeter (100mm ~ 5000mm, 0.5%, 4-20mA, IP65, 2CH)

Installation method: Wall mount

Flow Range: 0.01 ~ ±23ft/s (0.03~ ±7 m/s)

Accuracy: ±0.5% of measured value

Repeatability: 0.15%

Out put: 4-20mA, OCT pulse output, relay output, RS-232 / RS-485

Pipe Size Range: 4″~200″(100mm ~ 5000mm)

Keyboard: 16 (4×4) touch keys

Function key: 6 touch keys

Display: 4.7 inch TFT LCD, touch button

Power supply: 90-250VAC, 48-63 Hz

Transmitter enclosure: IP65, die-cast aluminum enclosure

Includes: Multi-pathUltrasonicflowmeter,OCTpulse/Relay/RS232/RS485/4-20mAoutput,twochannelpathInsertion transducerswith9mcable.
