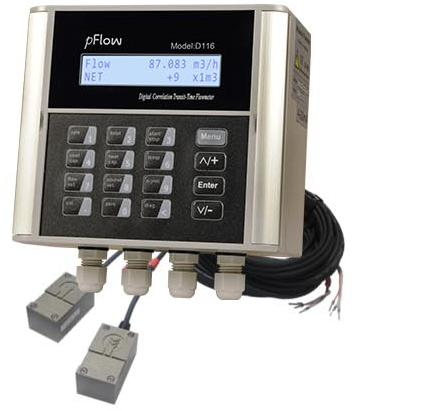

Pflow D118 Digital Correlation Transit Time Flowmeter (25-5000mm, 0.5%, 4-20mmA, IP65)

Installation method: Wall mount

Flow Range: 0.03 ~ ±40ft/s (0.01 ~ ±12 m/s)

Accuracy: ±0.5% of measured value

Repeatability: 0.15%

Out put: 4-20mA,OCTpulseoutput,relayoutput,RS-232/RS-485

Pipe Size Range: 1″ ~ 200″ (25mm ~ 5000mm)

Keyboard:16 (4×4) touch keys

Display: 20*2, alphanumeric, backlit LCD

Power supply: 90-250VAC, 48-63 Hz or 10-36V DC

Transmitter enclosure: IP65, die-cast aluminum machined enclosure

1G SD card high memory data logging, max. 512 days data

Includes: D118transmitterwithC011Clamp-ontransducers,OCTpulse/Relay/RS485/4-20mA,9mcables
