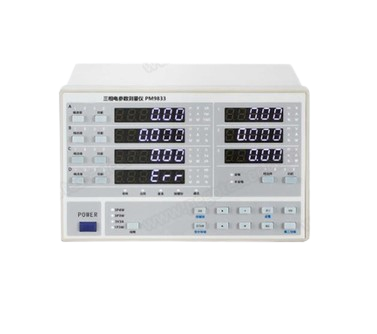

PEGO PM9833 3-Phase Digital Power Meter (10V-600V, 20mA-40A)

Accuracy: Class 0.5

Voltage: 10V-600V

Current: 20mA-40A

Input method: Floating input

Power factor: -1.000-1.000

Frequency: 45Hz-65Hz

Test method: AC

Input resistance

Voltage: about 2MΩ

Current: about 0.5Ω, high-4mΩ

Sample speed: 0.5s

Display method: 7 windows, white LED display

AD conversion: 800time/s, sample period 125μ, 24 bits, the voltage and current simultaneous sampling

Line filtering: Cut-off frequency 2KHz

Power: AC 110V-240V, 45-440Hz, DC 100V-300V

Interface: RS232/485 (Option)

Dimension: 215*132*275mm

Optional accessories: Support current transformer

The digital power meter is not only used to measure the single-phase measurement function of each input unit, but also the measurement function (∑) function of a wiring group composed of multiple input units. It can be used to test the AC voltage (U), AC current (I), power factor (λ), active power (P), apparent power (S), reactive power (Q), phase difference (Ø) and frequency (FU).

7 windows on the panel simultaneously display various parameters of each phase and the measured signal values are all true RMS values which is also applicable to the wave-distorted signal.
