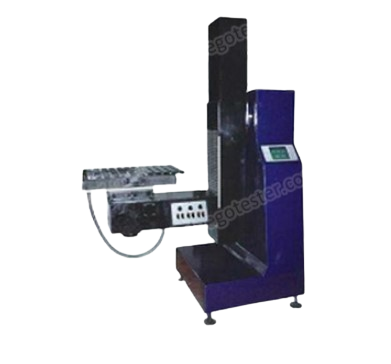

PEGO PG-VTG CIE Type Goniophotometer for Traffic Signal Lamp (0.010)

Rotating console: adopts high quality motor with low noise.

Rotation angle accuracy: 0.010

Photo-detector: class L(fi<1.5%) or class A

Photometer: low drifting, high accuracy

English software: can output IES file, PDF file, excel file

Double channel line type laser alignment device

Clamps for lamp mounting

104 digital power meter

3010 CC&CV DC power supply

500VAR AC power supply

19 inch cabinet: put the overall control system

Computer and printer: prepare by user

PG-VTG goniophotometer is designed according to CIE A-α, it is applied to test the photometric performance and verify conformance of the traffic singal lamps, like conner lamp, fog Lamp,direction Indicator, warning lamp, turn lamp and so on. Completely meet the requirements of ECE and SAE standards. Equip with software, enable to output IES, PDF, excel files.
