PEGO PG-TC Test Chain (2.5Ω/m±20%)
ManufacturerPEGO(View more products from this manufacturer)
ModelPG-TC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Material: 63% Cu, 37%Zn
Resistance value: 2.5Ω/m±20%
Length: 1.2m
Diameter: φ2mm

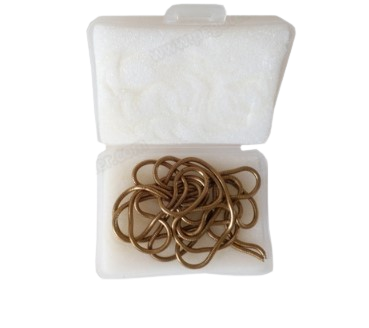

Test chain is designed according to GB7000.1 and IEC60598-1 clause 4.26.3 & figure 29. It is to apply a prevent the impairing of safety due to unintended short-circuiting of uninsulated accessible SELV part of opposite polarity. The test chain is made by copper zinc alloy (Cu: 30%, Zn: 37%) , the chain shall have a resistance value of 2.5Ω/m±20% when stretched with a load of 200g/m.
