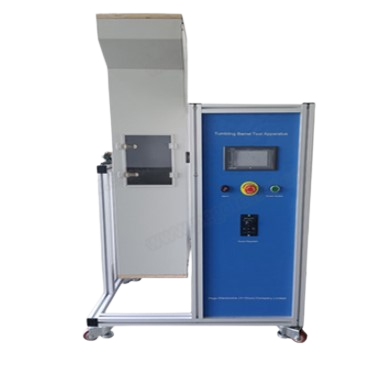

PEGO PG-TB31 Rotating Barrel (5R/min, 10 falls/min, 500mm/1000mm)

Control units: Button control+meter/touch screen

Test station: 1

Rotating speed: 5R/min

Rate of fall: 10 falls/min

Falling height: 500mm/1000mm

Number of falls

0-999999 (settable)

Complete the prescribed number of falls, the equipment will auto stop

Configuration

1) Test surface: steel with thickness 3mm

2) Backed hardwood: plywood with thickness 15-20mm

3) Bevel: backed by 2 wedge-shaped chip-resistant rubber with a hardness of 80±20IRHD as per ISO48

Sizes: Width: 220mm

The tumbling barrel is designed according to IEC60068-2-31 clause 5.3 / figure A.1, IEC60598-1 clause 4.13.5, IEC60884-1 clause 24.2 for repeat free fall test. The test is to check the mechanical strength of the electrical appliance like plugs and socket-outlets. The sample shall be placed in the tumbling barrel and subjected to prescribed number of falls.
