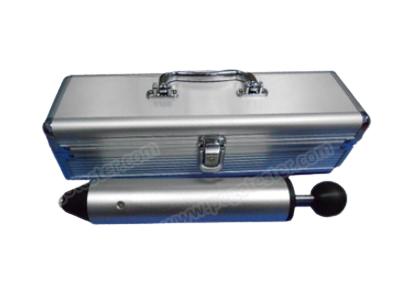

PEGO PG-SH04 0.5J Spring Hammer for Impact Test (0.5±0.05J)

Impact energy: 0.5±0.05J

Test IK level: IK04

Error: ±5%

Equivalent mass: 250g±5g

Radius of hammer: R10mm

Weight: 1250g

Trigger force: <10N

Material of hammer: Polyamide

Material of shell: Stainless steel

Reference standard: IEC60068-2-75 test Ehb, IEC60320-1 clause 23.4

0.5J spring hammer applies for performing the IK04 impact test, to appliance inlets designed for surface-mounting and the insulating material shrouds of plug connectors and appliance outlets. 0.5J spring hammer designs according to IEC60068-2-75 test Ehb, the hammer head has a hemispherical face of polyamide with radius of 10mm.

A per standard IEC60320-1 clause 23.4, the test sample is rigidly supported and 12 impacts are applied, there to each of four places chosen so as to include the weakest.
