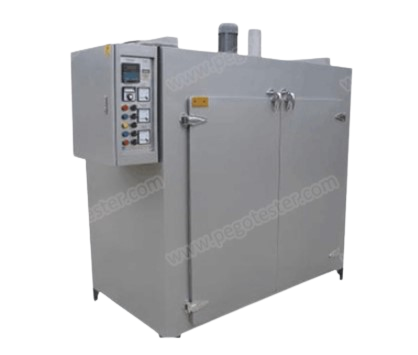

PEGO PG-OV Industrial Oven (700mm (D) * 600mm (S) * 1000mm (C)/420L)

Working size: 700mm(L)*600mm(D)*1000mm (H)/420L

Outer Size: 600mm(L)*700mm(D)*1100mm (H)

Temperature range: RT＋10℃~250℃

Temperature fluctuation: ±1℃

Temperature uniformity: ≤±2℃

Temperature deviation: ±2℃

Material

Liner: stainless steel

Outer shell: A3 steel plate

heat preservation: Ultra-fine thermal insulation cotton

Heating: electrical heater

Observe window: glass

Recycle system: Single cycle, using horizontal wind, with timing function, timing range: 0-99h

Temperature control: solid state control

Working power: AC 380V/50Hz (3 phases), 8KW

Accessories: Shelf*2

Oven is widely applied to the fields of motor, glass, ceramic, PC board, coating and etc. for the purpose of drying, preheat and finalize the design.The oven is consisted by working room, air supply device, Japanese control system, and protection system. Work with the ball pressure test apparatus can do the heating resistance test.
