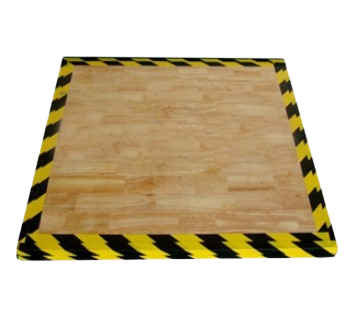

PEGO PG-HWS Drop Impact Test Hardwood Surface (600*600*52m, 600*600*63mm)

Item: GB hardwood surface | UL Hardwood surface

Size: 600*600*52m (customized) | 600*600*63mm (customized)

First Layer: Oak board*1 with thickness 13mm above | Oak board*1 with thickness 25mm above

Second Layer: Plywood*2 with thickness 19~20mm | Plywood*2 with thickness 19~20mm

Structure

The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening | The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening

Standard: GB4943.1-2011 | UL1993

The hardwood surfaces can meet the requirement of GB4943.1-2011 clause 4.2.6, it is applied to perform the drop impact test to detect the drop resistance performance of the sample. The hardwood surface shall rest on a concrete floor or an equivalent non-resilient floor during the test.
