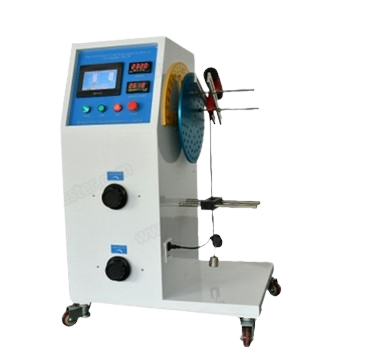

PEGO PG-FT01 Supply Cord Flexing Test Apparatus (LCD 7 inch + PLC, 5N, 10N)

Working power: 220V/50Hz, 300W max

Control system: 7 inch LCD touch screen+PLC

Load weights: 5N, 10N

Working station: 1 (customizable)

Oscillating speed: 0-70r/min

Oscillating drive: Step motor

Test times: 0-99999 (preset-able)

Oscillating angle: Free setting

angle indicator: 0- 360⁰ , made of stainless steel

Swing angle: ±180⁰ on both sides from vertical or any desired angle

Output voltage (max): 250V

Output current (max): 0-20A

Output power (max): 5KW

Power cord flexing test apparatus is designed according to IEC60335-1 clause 25.14 and figure 8, IEC60335-2-14 clause 25.14, IEC60884-1 clause 23.4 and figure 21, AS/NZS3112 clause 2.13.12.2 and figure 2.2, BS1363-1 clause 19.5 and figure 18. The flexing test is applied to the power cord of small appliance (like electric irons, coffee maker) and lumianire. The test is controlled by PLC and touch screen, the flexing angle and speed, test times can be adjusted. The power load is built-in the equipment.
