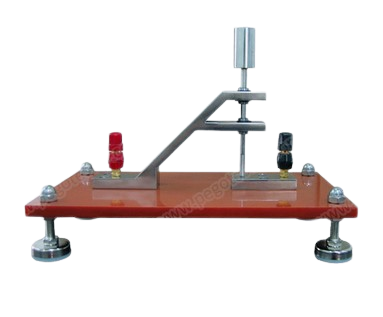

PEGO PG-DS12 Dielectric Strength Test Instrument (100g±1g, 50g±1g)
ManufacturerPEGO(View more products from this manufacturer)
ModelPG-DS12
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Standards: IEC60065 | UL1310
Mass of the moveable electrode: 100g±1g | 50g±1g
Diameter of metal pin: Φ5mm±0.1mm | Φ6.4mm±0.1mm
Diameter of support pin: Φ5mm±0.1mm | Φ6.4mm±0.1mm
edges rounded radius: 0.5mm | 0.8mm
Material of metal pin and support pin: Stainless steel/brass
The dielectric strength test instrument can meet the test requirements of IEC60065 and UL1310, for testing the dielectric strength of thin-layer insulation material. The device should work with a withstand voltage tester.
