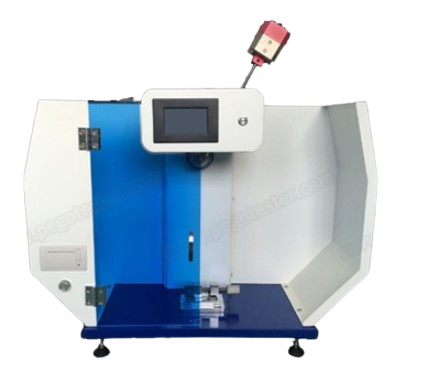

PEGO PG-CTST Digital Charpy Impact Strength Tester (2.9m/s or 3.8m/s)

Display: LCD touch screen (built-in micro-printer)

Units: J/m,KJ/m2 , kg-cm/cm, ft-ib/in

Angle accuracy: 0.01⁰

Impact energy accuracy: 0.01J

Impact speed: 2.9m/s or 3.8m/s

Distance between hammer to sample: 230mm, 395mm

Angle: 150°

Jaw support spacing: 40mm, 60mm, 70mm, 95mm

Support blade corner radius: R=1mm

Impact blade angle: 30°

Impact blade corner radius: R=2mm±0.5mm

Impact energy

1J,2J, 4J, 5J (impact speed: 2.9m/s )

7.5J,15J,25J,50J (impact speed: 3.8m/s)

The digital charpy impact strength tester is mainly used for the determination of impact toughness of non-metallic materials such as hard plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research institution, universities and colleges, and quality inspection departments. Meet the requirements of ISO179-2000, GB/T1043-2008, JB/T8762-1998 and GB/T 18743-2002.
