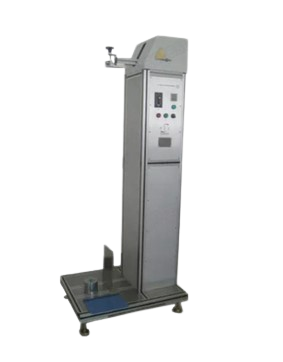

PEGO PG-CHF Current-Carrying Hose Flexing Test Apparatus (10r/min±1r/min)

Control units: Button control+meter

Raise angle from horizontal: 40°±1°

Mass: 5kg

Inclined plane : the mass slides against an inclined plate so that the maximum deflection of the hose is 3°

Length of arm: 300mm±5mm

Rotation speed: 10r/min±1r/min

Number of tests: 2500 revolutions+2500 revolutions (1 revolution: 0°-45°-0°)Setting value: 0-999999 (pre-settable)

Counter

Setting value: 0-999999 (pre-settable)

Real value: display the actual number of tests

Number of test station: 1

Number of test station: 1

Dimension: 500mm*800mm*1850mm (W*L*H)

Working power: 220V/50Hz

This apparatus is designed according to IEC60335-2-2 clause 21.103 and figure 102, it is applied to test the current-carry hose of vacuum cleaners resistant to flexing. During the test, the end of the hose is attached to the pivoting arm of the test equipment, the distance between the pivot axis of the arm and the point where the hose enters the rigid part is 300mm±5mm. The arm can be raised from the horizontal position by an angle of 40°±1°, a mass of 5kg is suspended from the other end of the hose. The test is carried out for 2500 revolutions, and then turned the fixed end of the hose through 90°, and the test continued for a further 2500 revolutions, the test is repeated in each of the other two 90° position. If the hose ruptures before 10000 revolutions of the crank, the flexing is terminated. After the test, the hose shall withstand the electric strength test.
