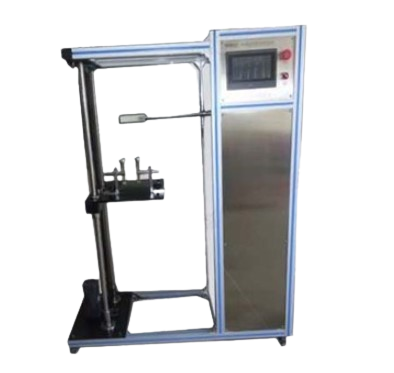

PEGO PG-BDT Bending Test Equipment for Adjusting Luminaire

Control mode: PLC control+touch screen interface

Test station: 1

Application: Adjusting luminaire (like drawing board luminaires, shop-window spotlights, floodlighting luminaires)

Test driver: Servo motor

Twist angle: 0-3600 adjustable (standard requirement: 1250 in both directions from the vertical)

Test frequency: 1-10 times/min

Number of trials: 0-999,999 cycles presetable (a cycle of operation is a movement from one extreme of the range to the other and back to the starting position, to make sure the rate of movement can reach 600 cycles/h)

Specimen adjustment: The fixture is manually clamped and adjusted up and down with AC motor, the maximum distance is 500mm

Maximum swing radius of the pendulum rod: R500mm, left and right of the platform, front and rear adjustment strokes are 0-500mm

Specimen clamping method: pressure plate and adjustable pressure block (three different fixtures can be distributed according to the sample base provided by the customer)

Test procedure: The touch screen can display bending angle, test cycles, number of trial

Alarm device: Flasher, auto stop

Dimension: 1300mm*750mm*1600mm (L*W*H)

Working power: 220V/50Hz

The bending test equipment for adjusting luminaire is designed to meet the test requirement of IEC60598-1 clause 4.14.3. The flexible cord or cable of adjusting luminaire shall have no more than 50% of the strands in a conductor be broken and no serious damage to the insulation after continuously bending and torsion.
