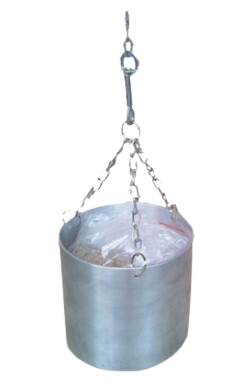

PEGO PG-AV1.8 Loaded Test Vessel (120mm±10mm, 1.8kg)

diameter of the base: 120mm±10mm

Height of the pan: 120mm

rounded radius: ≥10mm

Thickness of the wall: 2.5mm

1.8kg loaded test vessel is designed to meet the requirement of IEC60335-2-6 clause 21.102 and IEC60335-2-9 clause 20.101 to verify the ability of hob surface to withstand the stresses.The vessel is made of aluminum, and the flat base has a diameter of 120mm±10mm, its edges being rounded with a radius of at least 10mm. the vessel should be uniformly filled with a least 1.3kg of sand or shot so that the total mass is 1.8kg±0.01KG.

The loaded vessel is dropped flat 10 times from a height of 150mm onto the cooking zone of hob element,   and the hob surface shall not crack and the appliance shall withstand the electric strength.
