PEGO PG-AS/NZS3112 Maximum and Minimum Withdrawal Force Test Gauge (10A/250V, 20~50N)

Rated up to and includes (test plug): 10A/250V

Force Applied to test plug: 20~50N

Size of test pin: 6.2mm*1.58mm

Force applied to test pin: 1.5N

Material: Hardened steel

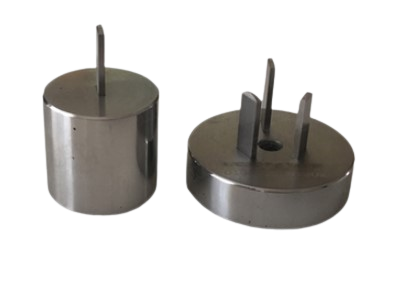

The withdrawal force test gauges are designed according AS/NZS3112 Figure 2.1(a), and meet the requirement of clause 3.14.8.3 and clause 3.14.8.2, includes three-pins maximum withdrawal Force Test Plug (10A/250V) to check the maximum force required when the plug is pulled out of the socket, and single-pin minimum withdrawal force test pin to check the minimum force required for a single- pin plug to be pulled out of the socket. The gauges are made of hardened steel.
