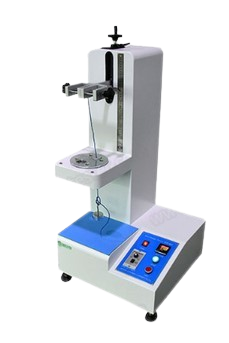

PEGO PG-ADG Apparatus for Checking Damage to Conductors (75mm)

Control mode: Electric control

Working station: 1

Working speed: 10±2r/min

Bushing rotation diameter: 75mm

Test time: 0-99min59s (test time can be preset, and stop automatically when time up)

Configured mass: 0.3KG,0.4KG, 0.7KG, 0.9KG, 1.4KG, 2.0KG

Test height: 260mm, 280mm, 300mm, 320mm

Diameter of f bushing hole: 6.5mm, 9.5mm, 13mm, 14.5mm

Height adjusting mode: Manual adjustable

Dimension and weight: L530mm*D500mm*H800mm/80kg

Working power: AC220±10%, 50/60Hz

Working condition: 5-35℃ (temp.), 30%-90%R.H.

The apparatus for checking damage to conductors is designed to meet the test requirements of IEC60884-1:2022 clause 12.2.5 and figure 13 and IEC60669-1. It is applied to checking if the terminal with screw clamping or screwless clamping can withstand the mechanical stress in normal use, and judging whether the design and structure of the screw clamping terminal meet the requirements of not excessively damaging the conductor when it clamps the conductor.
