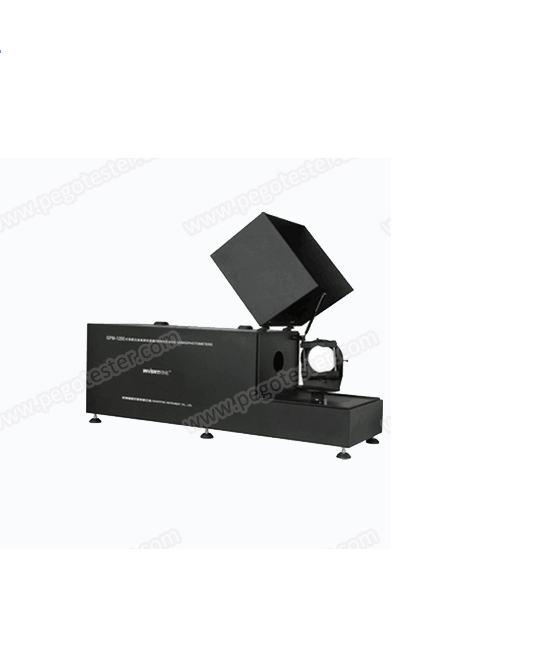

PEGO PG-1200A Compact Goniophotometer for LED Lamp (0.1-30000cd)

Luminous intensity test range: 0.1-30000cd

Accuracy of photometry: class 1

Beam spread angle: θ(50%)θ(25%)θ(75%)

Angle range: -90~+90 degrees

Accuracy of angle: ±0.2 degrees

Angle interval: 0.5/1/1.5 degrees

Detector: V（λ）correction

RS-232 port, work under the system of Windows 2000/xp

Max lamp size: 18cm

Test distance: 1000mm/316mm

Can output IES file

PG-1200A luminous intensity distribution test system is applied to test the total luminous flux, isocandela diagram, isolux diagram, IES file and other photometry data. Equip with dark chamber and light diaphragm, the dark room is needless. The test system is applied to test LED reflection lamp fixture, meet the requirements of LM-79, IEC and CIE121.
