PEGO OHSP-350UV Portable UV Spectral Irradiance Colorimeter (230nm–850nm, 5–200000lx, 2nm)

Spectrum: 230nm–850nm

Illuminance: 5–200000lx

Spectrum width (FWHM): 2nm

Color temperature: 1000–100000K

Spectrum resolution: 0.2nm

Sensor: CCD

Sensor array points: 3648

Zero mode: Auto zeroing

Integral time: 50us–20000ms

X,Y accuracy: ±0.001| At condition of luminaire A, 2856K, 10000LX

X,Y repeatability: ±0.0005| At condition of luminaire A, 2856K, 10000LX

Illuminance accuracy: ±4%| At condition of luminaire A, 2856K, 10000LX

Rendering accuracy: ±1.5%| At condition of luminaire A, 2856K, 10000LX

Wavelength accuracy: ±0.5nm

LCD screen: 5 inches, IPS touch screen

Wavelength interval: 1nm

Detector port: Ø10mm

Test energy: 0–999999mJ/cm²

Resolution: 480*854

Energy accuracy: ±10%

Test mode: Single/continuous

AD resolution: 16 bits, 250KSPS

Exposure mode: Auto/manual

Language: Chinese/English

Spectrum display 6 parameters for option to display Spectrum curve

File save: 8GB SD card

Data output connector: SD Card/USB2.0

Data display: Up and down scroll to display all the data

Dimension (LWH): 163x81x25.8mm

Diagram display CIE1931 chromaticity diagram CIE1960 chromaticity diagram CIE1976 chromaticity diagram SDCM diagram CRI circular diagram CRI histogram

Weight: 500g

Operation temperature: 0~35°C

Storage temperature: -10~40°C

Continuous working hours: >10 hours

Battery capacity: 4000mAh

Structure: Aluminum alloy

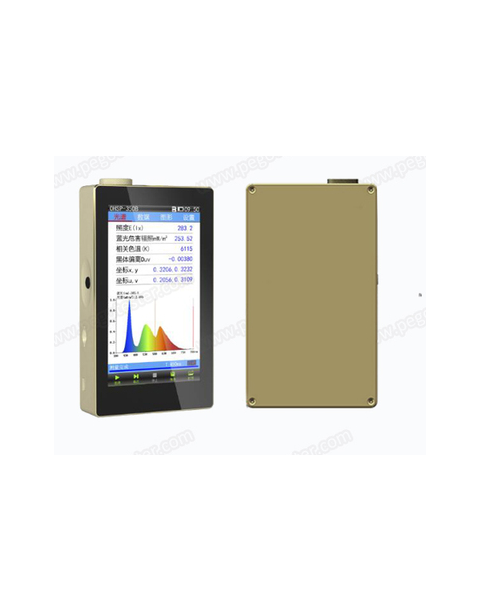

The UV spectral irradiance colorimeter can test the UV mercury lamp, UV LED lamp at the wavelength range of 230nm to 850nm. The equipment has the configuration of CCD sensor,   5 inch LCD touch screen, 4000mAh Li-battery and 8GB SD card. With small size of 163mm*81mm*25.8mm can realize the field test for illuminance and irradiance.
