PEGO OHSP-350B Blue Light Hazard Tester (380nm~780nm, 2nm)

Wavelength range: 380nm~780nm

Spectral mode: Telephoto optical system

Sensor: Colorimetric: CCD

FWHM: 2nm

Resolution and repeatability: 0.2nm, ±0.0005 (x, y)

Wavelength accuracy: ±0.5nm

Illumiance accuracy: Class 1 (±4% reading+1 digit)

Photosensitive surface: Φ10mm

Chromaticity coordinates accuracy: ±0.0025

Color temperature range: 1000K~100000K

Straylight: ≦0.3%

Illumiance range: 5lx~200klx

Integrated time: 50μs~10000ms

Working environment: -10~40℃, <70% R.H.

Screen: 5 inch*IPS HD LCD touch screen

Interface: Micro USB

Storage: 8G TF card

Power supply: Li-battery with adaptor

Accessories: 8G TF card, data cable, power adapter and etc.

Size: 135mm*80mm*31mm (Height*width*thickness)

Weight: 430g

The blue light hazard tester adopts CCD long focal length and wide spectrum technology to measure and analyze the spectral blue light information and evaluate the blue light hazard of the measured lamp, it is widely used to measure the light biohazard values of LED lamp, UV lamp and other luminaires.

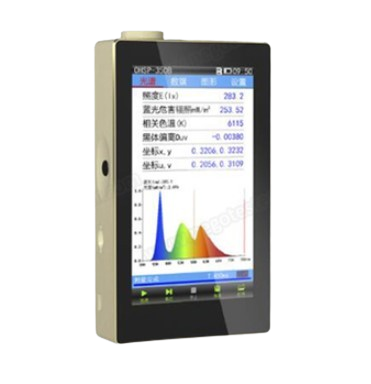

Blue light exists in a large number of artificial light sources such as LED screens, LED lights, and fluorescent lights (like cellphone, computer monitors, LCD screen, LED lightings), the blue light hazard tester is a small hand-held equipment with LCD touch screen, it has 4 functions of detection, measurement, screening and comparison. Detection: quickly detect anti-blue light effects; Measurement: LCD displays measured values in real time; Screening: screen different anti-blue light functions; Comparison: Differentiate anti-blue light levels, meet the requirements of GB/T20145-2006 and CIES 009/E:2002.
