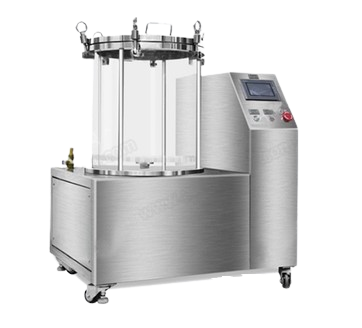

PEGO IPX8AS Negative pressure Leak Testing Machine (86kPa~106kPa)

Outer size: 1200mm*1200mm*1400mm (L*W*H)

Inner size: Φ500mm*500mm (customized)

Wall thickness: 15mm

Jar Material: plexiglass

Flange thickness: 20mm

Flange material: Stainless steel

Weight: 100KG

Pressure control mode: auto

Pressure error: ±0.002 Mpa

Sensor display accuracy: 0.001Mpa

Test Depth: 0-5m

Pressure adjustment range: -0.05MPa-0.05MPa

Pressure hold time: 0-9999 s

Automatic decompression delay: 0-9999s

Delay test time: 0-9999 s

Protection device: Leakage switch protection

Working Power: 220V/50Hz

Working condition

Temperature: 5℃~35℃

Relative humidity: ≤85%

Pressure: 86kPa~106kPa

Negative pressure leak testing machine can meet the requirement of IEC60529 for IPX8 testing and IEC60598, it is mainly applied to small appliances for air tightness detecting, and the leak points can be found out during the test.The equipment is mianly consisted by transparent Sealed jar and control unit, the equipment has negative pressure test function, air pressure test function and water pressure test function.
