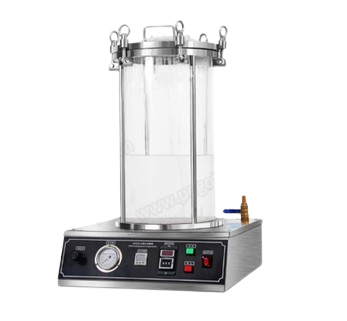

PEGO IPX8-S30 Transparent High Pressure Water Tank (500mm*550mm*600mm (L*W*H), Φ270mm*300mm)

Outer size: 500mm*550mm*600mm (L*W*H)

Inner size: Φ270mm*300mm

Wall thickness: 15mm

Jar Material: acrylic

Flange thickness: 20mm

Flange material: Stainless steel

Weight: 40KG

Pressure control mode: auto

Pressure error: ±0.002 Mpa

Sensor display accuracy: 0.001Mpa

Test water depth: 0-30m

Pressure adjustment range: 0.01MPa-0.3MPa

Safety valve exhaust pressure: 0.35MPa

Pressure hold time: 0-999min

Protection device: Leakage switch protection, mechanical safety valve protection

Working Power: AC220V/50Hz (single phase), 100W

Working condition

Temperature: 5℃~35℃

Relative humidity: ≤85%

Pressure: 86kPa~106kPa

Test water: Tap water or pure water

Air source: The air compressor is provided by the user, and the recommended output air pressure: 0.6Mpa—0.8Mpa. Install the female quick connector

IPX8 High Pressure Transparent Water Tank can meet the requirement of IEC60529 for IPX8 testing and IEC60598. The pressure in the jar can be precisely automatically controlled in purpose of checking the tightness and the leak points (by observe the bubbling during the test).The equipment is mainly consisted by transparent Sealed jar and control unit.
