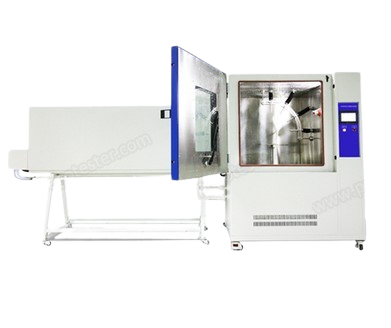

PEGO IPX69K High Temperature High Pressure Jetproof Test Chamber (Φ6.3mm, Φ12.5mm)

Working dimension (mm): 1000*1000*1000 (L*W*H)

Outer dimension (mm): 4000*1180*1850 (L*W*H)

IPX5 nozzle diameter: Φ6.3mm

IPX6 nozzle diameter: Φ12.5mm

Test distance for IPX5/6: 2.8m (distance from nozzles to turntable center)

Nozzle fixing method: Mechanical fixation (auto or Programmable nozzle gun angle adjustable)

Number of nozzles for IPX9K: 4

Nozzles position: 0⁰, 30⁰, 60⁰, 90⁰ (vertical distribution)

Test distance for IPX9K: 100~200mm (adjustable)

Test time: 30s per position

Bear weight: 50kg

Test time: 0~9999s (presettable)

Diameter of turntable: Φ600mm

Turntable lifting mode: Manual adjustable

Flow rate of IPX5: 12.5±0.625 (L/min)

Flow rate of IPX6: 100±5 (L/min)

Temperature of IPX9K: RT. or 80±5℃

Water pressure of IPX9K: 8000-10000Kpa

Turn speed of turntable: 4-10r/min (adjustable)

Working power: 380v/50Hz, 15KW

EUT power: 220V

Protection: Leakage protection, water shortage protection, short circuit protection, induction protection

IPX69K High temperature and high pressure jet spray test chamber is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9. The equipment can do the test of IPX5, IPX6, IPX6K and IPX9K testing. The user can define the test parameters by 7 inch LCD touch screen, and eqeuipment is auto controlled by PLC (Panasonic). The nozzles, turntable and inner box are made by stainless steel, built in waterproof socket to support live test. It is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement. Test demo: https://youtu.be/dlsGlPGXwsU

IPX5 Water jets

Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. Test duration: at least 15 minutes, volume: 12.5 litres per minute, pressure 30 kPa at distance of 3 m.

IPX6 Powerful water jets

Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes, volume: 100 litres per minute, pressure 100 kPa at distance of 3 m.

IPX6-K Powerful water jets with increased pressure

Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction, under elevated pressure, shall have no harmful effects. Test duration: at least 3 minutes, Water volume: 75 litres per minute, Pressure: 1000 kPa at distance of 3 m.

IPX9K High Pressure/Steam Water Jets Cleaning

Water projected in high pressure high temperature gainst the enclosure from 4 directions (00, 300, 600, 900) shall have no harmful effects. Test duration: 30s per direction, water volume: 14~16 litres per minute, pressure: 8000~10000 Kpa, temperature: 80±5℃, test distance: 100 to 150mm
