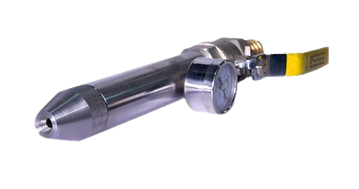

PEGO IPX56A IPX5 and IPX6 Hand-Held Jet Hose Nozzles (IPX5 6.3mm 12.5L±0.625L/min; IPX6 12.5mm 100±5L/min)

Item: IPX5 | IPX6

Nozzle Hole Diameter: 6.3mm | 12.5mm

Water Discharge: 12.5L±0.625L/min | 100±5L/min

Nozzle distance between shell: 2.5-3m

Test Time: More than 1min/m2 and 3mins

Pressure Gauge: 0~0.25Mpa

The IPX5 and IPX6 jet hose nozzles are strictly designed according to the standard IEC60529 and GB4208 figure 6.

Jet hose nozzle with internal diameter of 6.3mm is for IPX5 jet-proof testing, the water flow rate is 12.5L/min, and test time is 1min/m2 and at lest 3 min. The test distance is 2.5m to 3m .

Jet hose nozzle with internal diameter of 12.5mm is for IPX6 strong jet-proof testing, the water flow rate is 100L/min, and test time is 1min/m2 and at lest 3 min. The test distance is 2.5m to 3m
