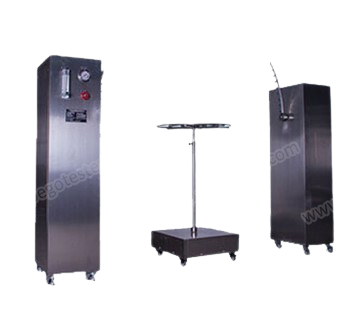

PEGO IPX34C IPX3 and IPX4 Oscillating Tubes Test Equipment (tube’s radius from R200 to R1600)

Tube Radius: R1600 | R1400 | R1200 | R1000 | R800 | R600 | R400 |R200

Outer size (L*W*H, m): 4*3.2*2.8 | 3.6*3*2.6 | 3.2*2.4*2.4 | 2.8*2.2*2.2| 2.4*1.8*2 | 2*1.4*1.8 | / | /

Delivery rate (L/min): 0~10| 0~10 | 0~6 | 0~6 | 0~4| 0~3 | / | /

Diameter of turntable: Φ1000 | Φ1000 | Φ800 | Φ800 | Φ600 | Φ600 | / | /

Height of turntable (mm): 1750~2350 | 1750~2350  | 1350~1950 | 1350~1950 | 950~1550 | 550~1000 | / | /

Aperture of nozzles: 0.4 mm

Tube angle: 120⁰ (IPX3), 360⁰ (IPX4)  or user-defined

Rotation speed of tube: 4s for 2*1200, 12s for 2*3600 or user defined

Material of tube: SUS304 stainless steel

Rotation speed of turntable: 1~5r/min

Protection: Electric leakage, hydropenia, short circuit

Working power: 220V, 50/60Hz, 1KW

IPX3-4 Rain Spray Waterproof Testing Equipment with Oscillating Tube R200 to R1600 is designed according to IEC60529 clause 14.2.3 and 14.2.4. It is applied to simulate the electronics, luminaire, electric components and auto parts under the conditions of spraying water and splashing water, and then to check if they can meet the requirements.

The oscillating tube’s radius from R200 to R1600, the aperture of nozzles is 0.4mm, the sample can be over 50KG, and the turntable is no perforated.

IPX3 water Sprayproof Testing Equipment request water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect. Test duration: 10 minutes, volume: 0.7 L/ minute per hole.

IPX4 water splashproof Testing Equipment request water splashing against the enclosure from any direction shall have no harmful effect. Test duration: 10 minutes, volume: 10 L/ minute.
