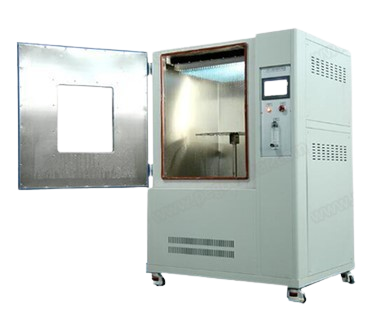

PEGO IPX12A-200 IPX1 and IPX2 Vertical Rain Waterproof Test Chamber (200*200, 350*350*800 (D*R*C), 550*430*1230 (D*R*C))

Drip board size (mm): 200*200

Inner size (mm): 350*350*800 (L*W*H)

Outer size (mm): 550*430*1230 (L*W*H)

Aperture of nozzle: Φ0.4mm

Grid pattern: 20*20mm

Delivery rate: 1~3mm/min (±0.5mm/min)

Adjust mode: Manual adjustment

Lifting height of drip board: 350~700mm (adjustable)

Rotation speed of turntable: 1r/min

Tilt angle of turntable: 0⁰ or 15⁰ in 4 positions

Lifting height of turntable: fixed

Test time: 10min

Protection device: Electric leakage, hydropenia, short circuit

Working power: 220V, 50Hz/60Hz, 1KW

IPX1 and IPX2 drip box test chamber is designed to meet the test requirements of   IEC60529 clause 14.2.1 and 14.2.2. It is applied to simulate the conditions of vertically dripping and dripping with 15 degrees tilted, and then to check if the products ( electronics, luminaire, electric components, auto parts and etc.) can meet the requirements. The equipment can be customized according to size of test specimen. This is a chamber type equipment suitable for the small samples, the water can be recyled.
