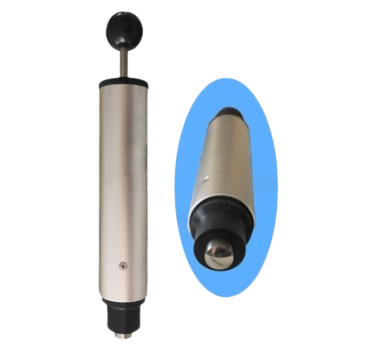

PEGO IK-SH07 Spring Hammer (IK07; IK01 to IK06)

Impact energy: 2J | 0.14, 0.2, 0.35, 0.5, 0.7, 1J

Test IK level: IK07 | IK01 to IK06

Error: ±5% | ±10%

Equivalent mass: 500g±5g | 250g±5g

Radius of hammer: R25mm |R10mm

Weight: 1250g | 1250g

Trigger force: ＜10N | ＜10N

Material of hammer: steel | Polyamide

Material of shell: Stainless steel | Stainless steel

2J spring hammer test apparatus is designed according to IEC60068-2-75 figure E.1. The spring hammer consists of the boy, the striking element and the release system. The striking element is made of steel and has an equivalent mass of 500g. 2J spring hammer is for IK07 test, it can be used in any position providing there is enough room to apply it correctly.
