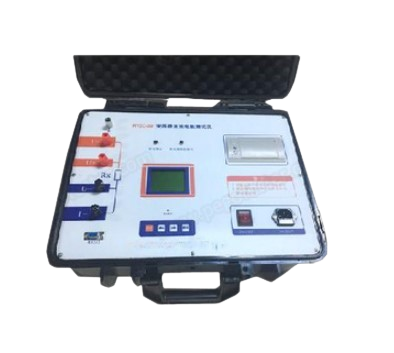

PEGO HYZC-20 DC Resistance Meter (1.0mΩ ~10.00Ω)

Measuring accuracy: ± (0.2% RGD+2d)

Measuring range:

10.0mΩ~10.00Ω (2A)

4.0mΩ~4.000Ω (5A)

2.0mΩ~2.000Ω (10A)

1.0mΩ~1.000Ω (20A)

Output current accuracy: ±1%

Display screen: 7 inch

Data storage: 200 groups

Working power: 220V±10%, (50±1) Hz

Working conditions: -10℃~50℃, <90％ (R.H.)

DC resistance meter has 4 ranges: 2A, 5A, 10A and 40A, adopts 4 wires method to test resistance, it has the features of fast test speed, good stability, high accuracy and strong anti-interference.
