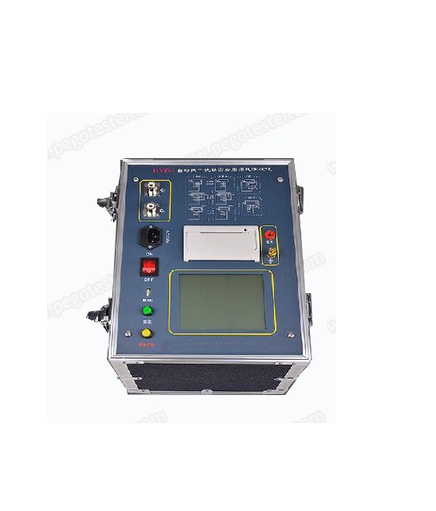

PEGO HYGS Dielectric Loss Detector (0.5~10KV, 10μA~1A)

Accuracy: Cx: ±(reading*1%+1pF), tgδ: ±(reading*1%+0.0040)

Anti-interference index: frequency conversion anti-interference, can still reach above precision at 200% interference

Capacitance range:

3pF~60000pF/10kV 60pF~1μF/0.5kV (test with internal voltage)

3pF~1.5μF/10kV 60pF~30μF/0.5kV (test with external voltage)

Resolution: 0.001pF

Tgδ range: no limit, resolution: 0.001%, capacitance, inductance and resistance auto identification

Test current range: 10μA～1A

Test with internal voltage:

Voltage setting range: 0.5~10KV

Max current output: 200mA

Test frequency: 45Hz, 50Hz, 55Hz, 60Hz, 65Hz (single frequency)

              45/55Hz, 55/65Hz, 47.5/52.5Hz (Dual frequency)

Frequency resolution: ±0.01Hz

Test with external voltage

Max test current : 1A (measurement of ungrounded test object), power frequency or conversion frequency: 40~70Hz

Max test current: 10KC/1A (measurement of grounded test object), power frequency or conversion frequency: 40~70Hz

CVT self-excitation low-voltage output

Output voltage: 3~50V, output current: 3~30A

Test time: about 40s (related with test mode)

Input power: 180V~270V (AC), 50Hz±1% (supply by city power or electric generator)

Printer: A7 micro-thermal printer

PC port: standard RS232 port

Working conditions: -10℃~50℃ (temperature), <90% (R.H.)

Dimension (mm): 460*360*350

Weight: 28KG

Dielectric loss test is a effect way to detect the damp degeneration and local defect of electrical equipment insulation, it is used in transformer winding and bushing, current transformer, voltage transformer, breaker, high-tension switch, parallel capacitor, coupling capacitor and etc. Dielectric loss detector adopts frequency conversion power technology, and make use of single chip microcomputer and electronic technique to carry out automatic frequency conversion and data operation, to make the detector has the advantage of strong anti-interference, fast test speed, high accuracy, fully automatic digitization and simplification operation. Take the high power switch power supply to output 45Hz and 55Hz pure sine-wave, and automatic inflates, can supply 10KV voltage at most. Automatically filter 50Hz interference, it is suitable for site test of transformer substation.
