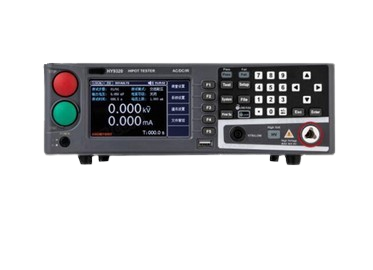

PEGO HY9320 AC/DC Withstand Voltage and Insulation Resistance Tester (AC: 0.050–5.000 kV, DC: 0.050~6.000 kV; AC: 0.001mA–20mA, DC: 0.1μA–20.00mA)

Withstand voltage test

Output voltage

AC

Output range: AC:0.050-5.000KV

Waveform: Sine-wave

Distortion: <3%

Operating Frequency: 50Hz/60Hz

Frequency Accuracy: ±1%

Output Power: 1000VA (5.000KV, 20mA)

Voltage Regulation: ±(1.0%+50V)

DC

Output range: DC:0.050~6.000KV

Signal source frequency: 600Hz

Output power: 600VA (6.000KV, 10mA)

Voltage regulation: ±(1.0%+100V)

Voltage resolution: 1V

Voltage output accuracy: ±(1.0% setting+5V) (no-load)

Accuracy: ±(2%SV+5V)

Test current range

AC

Test range: 0.001mA-20mA

Short-circuit current: >40mA (Set output voltage>500V)

Current resolution: 0.001mA

Current accuracy: ±(2.0% reading+5digit)

actual current: OFF 0.001mA-20mA

DC

Test range: 0.1μA-20.00mA

Current accuracy: ±(2.0% reading+5digit)

Discharge function: Automatic discharge after the test is over

Insulation resistance test

Output voltage: 0.050KV-2.500KV

Voltage resolution: 1V

Voltage accuracy: ±(1.0% reading+2V)

Maximum output current: 10mA

Maximum output power: 25VA (2500V/10mA)

Output instantaneous short-circuit current: >20mA (set output voltage>500V)

Load regulation: ≤1% (rated power)

Ripple (1KV): ≤3% (1KV, no-load)

Discharge function: Automatic discharge after the test is over

Test resistance: 0.1MΩ-10GΩ

Resistance display range

10mA: 0.1MΩ-0.5MΩ

2mA: 0.5MΩ-5MΩ

200μA: 5MΩ-50MΩ

20μA: 50MΩ-500MΩ

2μA: 500MΩ-10GΩ

Resistance measurement accuracy

≥500V

1MΩ-1GΩ±(5%reading+5digit)

1GΩ-10GΩ±(10%reading+5digit)

<500V

0.1MΩ-1GΩ±(10%reading+5digit)

1GΩ-10GΩ

Current measurement accuracy: ±(1.5% reading+5 digit)

Arc detection: OFF class 1-9

Current upper limit: 0.001mA-20mA(AC), 0.1μA-10mA(DC)

Current lower limit: 0.001mA-20mA(AC), 0.1μA-10mA(DC)

Resistance upper limit: OFF, 0.1MΩ-10GΩ

Resistance lower limit: 0.1MΩ-10GΩ

discriminant output: LCD display PASS/FAIL, sound alarming

Voltage sag time: 0s-999.9s

Voltage holding time: 0.3s-999.9s (for DC withstand voltage test only)

Accuracy of timer: ±(0.2% setting value±0.1s)

Storage and interface

20 test files, each file can have 20 test steps

USB host (support 128g max.)

Control interface: HANDLER, SINGAL

Protocol: SCPI, Modbus RTU

Communication Interface: RS232C, LAN

Accessories: Test fixutres, HV probe, fuse, power cable

Working Power: 220V, 50Hz/60Hz

Dimension: L283mm*D432*H108mm

Weight: 13KG

HY9320 withstand voltage and insulation resistance tester is a 2 in 1 equipment, it can perform both withstand voltage test and insulation resistance test. Those are the basic electric safety tests widely used in the fields of household appliance. transformer, electric equipment, components and etc.. The tester has the features of small volume, nice appearance and simpler operation.
