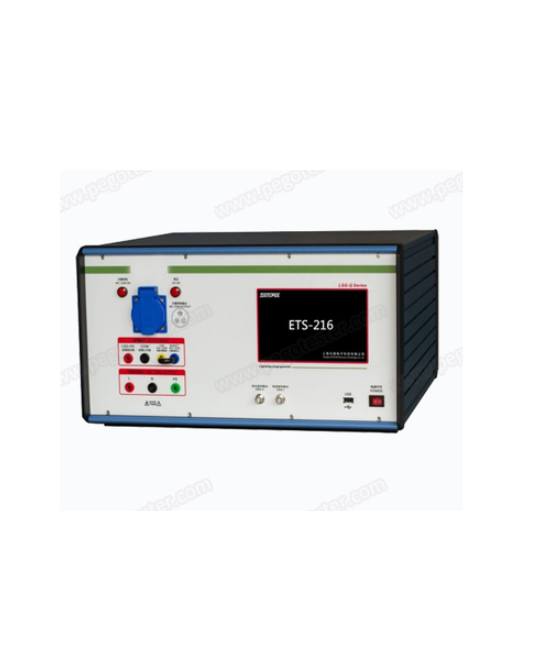

PEGO ETS-216 Electrial Fast Transient and Surge Generator (2 in 1) (6kV (Max) ±5％, 0.25－5kV ±5％)

Parameters of lighting surge generator

Output voltage (open): 6kV (Max) ±5％

Frontier time: 1.2μs ±30％

Time to half-value: 50μs ±20％

Output current (short): 3kA ±5％ (max)

Frontier time: 8μs ±20％

Time to half-value: 20μs ±20％

Output polarity: Positive, negative, positive/negative automatically

Output impedance: 2Ω±10％

Surge trigger mode: Synchronization,asynchronization

Inject phase: Freely set at 0－360°，resolution:1°

Trigger mode: Auto or manual, single

Surge times: 1-9999 times

Memories: Buit-in IEC standard or customized, 1000 groups

Surge interval: 20-9999s

Surge voltage monitoring attenuation ratio: 1000:1

Surge current monitoring attenuation ratio: 1000:1

Accuracy: Superior   5％

Peak surge voltage and current display: LCD synchronous display

Surge voltage and current monitoring output: BNC Coaxial terminal，≥1MΩ

Voltage and current of EUT monitoring: LCD real time display: AC voltage and current

CDN

AC: single phase 300V，10A(16AMax), 50/60Hz

DC: 300V, 10A (16AMax)

Coupling mode

L-N

L-PE, N-PE, L+N-PE

Coupled device

L-N: 18μF capacitance

L-PE, N-PE, L+N-PE: 10Ω resistor ＋9μF capacitance

Working environment: Tempereature: 15°C－35°C, R.H.: 10%－75%

Power supply: AC220±10％, 50/60Hz

Dimension: 470mm* 260mm* 500mm (W*H*D)

Parameters of EFT Generator

open circuit output voltage: 0.25－5kV ±5％

50Ω load output voltage: 0.125－2.5kV ±5％

Wave sharp of the pulse: 5/50ns, 50Ω/1000Ωload

Rise time

5ns ±30％, 50Ω load

5ns ±30％, 1000Ω load

duration

50ns ±30％, 50Ω load

50ns －15/+100ns, 000Ω load

Impedance: 50Ω ±20％

Output polarity: Negative/positive

Repetition frequency: 0.1－1200.0kHz ±10％

burst duration

Standard: 15ms@2.5kHz/5kHz,750μs@100kHz,250μs@300kHz

Adjustable

Nos of pulse can adjust at 1-255

Burst duration=（pulse number-1）/repetition frequency

Burst period: 100－999ms

Burst mode: Synchronous or asynchronous

Synchronous phase: Free set at 0－360⁰, resolution: 1⁰

Test function: IEC standard or set test mode freely (1000 groups)

Built-in coupling and decoupling network (3-phrase and 5 wires)

AC: 3-phrase 380V,16A, 50/60Hz

DC: 380V,16A (Max)

Coupling mode: L1,L2, L3, N,PE,freely setup

Coupling capacitors: 33nF ±10％

Environment requirements: Temperature:15°C－35°C; Humidity: 10%－75%

Power requirements: AC220±10％,50/60Hz, 300W

EFT and Surge Generator is applied to check the performance of the power cable and inner electrical circuit of equipment (home appliances, communication electronics, electrical components, auto control system and etc.) against the high energy transient interference caused by switching and lightning transients. The equipment meet the requirements of IEC61000-4-5 and IEC61000-4-4.

Burst and surge generator is a 2 in 1 equipment, it can do both the fast transient immunity test and surge immunity test in an economic way.
