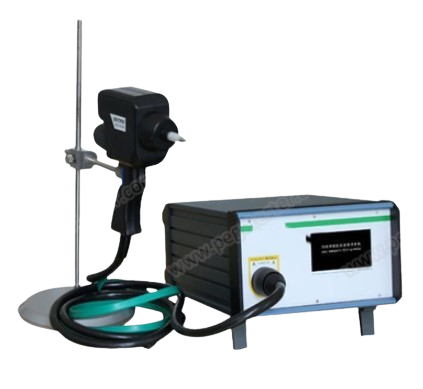

PEGO ESD-2005Q Electrostatic Discharge Generator (LCD Display) (0.1－30kV ±3％, 0.1－30kV ±3％)

Output voltage

Contact discharge: 0.1－30kV ±3％

Air discharge: 0.1－30kV ±3％

Holding time: >5s

Polarity of output voltage: Positive, negative, positive/negative auto

Trigger mode: Single,counting,20pps,other

Discharge interval: 0.05~99.99s

Numbers of discharge: 1~9999

Energy storage capacitance: 150pF ±10％(replaceable)

Discharge resistor: 330Ω ±10％（replaceable)

Waveform of contact discharge: Meet the standards of EN/IEC 61000-4-2，GB/T 17626.2

Rising time: 0.8ns ±25％

Environment: Temperature:15°C－35°C;Humidity:10%－75%

Power supply: AC220±10％，50/60Hz，300W

Dimension: 260mm(W)×170mm(H)×360mm(D)

Weight: About 5kg

The electrostatic discharge generator is designed to meet the requirements of IEC61000-4-2 for electrostatic discharge immunity test. This equipment consists of charging resistor, enery storage capacitor, disctributed capacitance, discharge resistor, voltage indicator, discharge switch, interchangeable of the discharge electrodes, discharge return cabe and power supply unit. The energy storage capacitance is 150pF which simulates human body capacitance; the discharge resistance is 330Ω which simulates human body resistance.

Model ESD-2000Q configures LCD touch screen, user can define the test procedure or select IEC test procedures directly.
