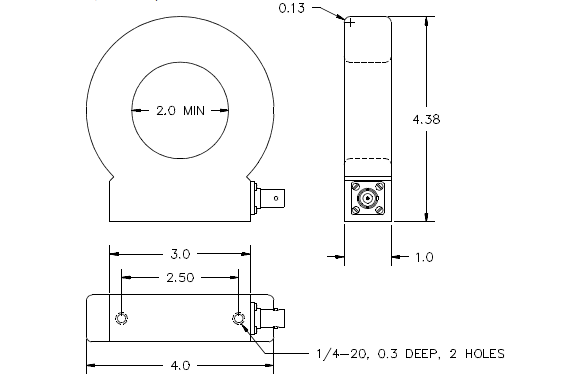

PEARSON 6585 Current Monitor

Sensitivity: 1 V/A ±1%

0.5 V/A into 50 Ω

Output resistance: 50 Ω

Maximum peak current: 500 A

Maximum rms current: 10 A

Droop rate: 0.3 %/μs

Useable rise time: 1.5 ns

Maximum I•t: 0.002 A s with bias

Low frequency 3 dB cut-off: 400 Hz

High frequency ±3 dB: 250 MHz (approximate)

Maximum I²t / pulse: 5 A² s

Output connector: BNC (UG-290A/U)

Operating temperature 0 to 65°C

Weight 0.68 kg

Datasheet
