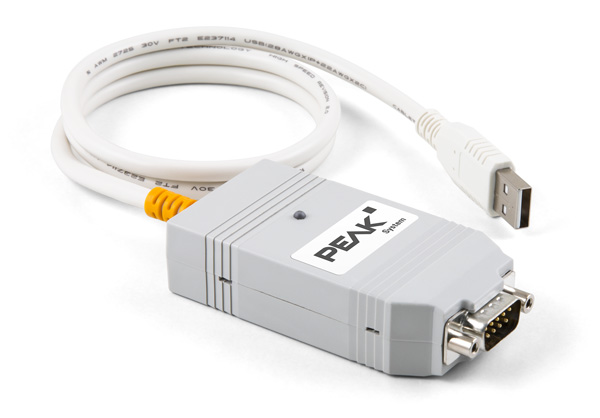

Peak System IPEH-004052 LIN Interface for USB

LIN interface for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)

LIN connection (ISO 17987)

Compliant with all LIN specifications (up to version 2.2)

Bit rates from 1 kbit/s up to 20 kbit/s

Can be used as a LIN master or slave (1 ms master task resolution)

Automatic bit rate, frame length, and checksum type recognition

Autonomous scheduler with support for unconditional, event, and sporadic frames

LIN bus connection via D-Sub, 9-pin

LIN connection short-circuit-proof against transceiver supply and ground

NXP LIN transceiver TJA1028T or TI LIN transceiver TLIN1028D

Galvanic isolation on the LIN connection up to 500 V

Indicator LED for interface status

Voltage supply 5 V DC via USB port

Transceiver supply 6 to 28 V DC via D-Sub, pin 9

Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
