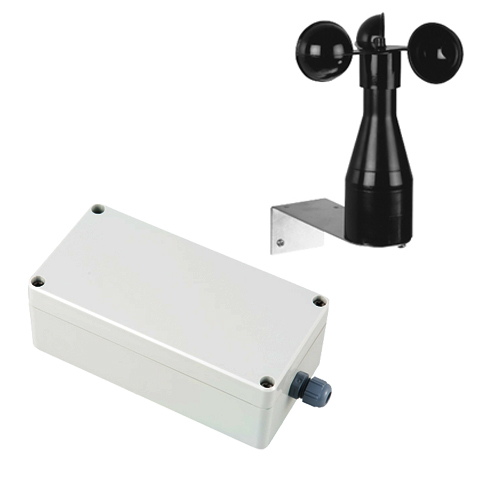

PCE WL 1 Air Velocity Meter

Specifications

Storage unit

Inputs:2 x digital inputs; 1 x analogue input; 1 x NTC input for external temperature sensors

Interface:RS-232

Sampling interval:1 min or 10 min

Memory:microSD card (FAT32), max. 2 GB

Data format:CSV file, ASCII format

Recorded parameters:average values, min/max values and standard deviations (with date and time stamp)

Power supply:2 x 1.5 V type C batteries

Battery life:up to 1 year (with 1 min sampling interval); up to 3 years (with 10 min sampling interval)

Housing:robust plastic housing

Protection class:IP65

Dimensions:160 x 80 x 55 mm

Weight:450 g

Wind sensor

Output:0 ... 100 Hz at 40 m/s

Measuring range:0.8 ... 40 m/s

Accuracy:± 0.5 m/s or ± 5 % of measurement value

Max. load:max. 60 m/s (short-term)

Contact classification:10 VA, max. 42 V DC, max. 0.4 A

Mounting:with support bracket

Heating:max. 24 V DC/AC, max. 1 A

Environmental temperature:-25 ... +60 °C (ice-free)

Cable:3 m; LiYY 4 x 0.5 mm²

Protection class:IP54

Dimensions:Ø134 x 160 mm

Weight:ca. 300 g

Delivery contents

1 x air velocity meter PCE-WL 1

1 x wind sensor

1 x 512 MB microSD card

1 x mounting bracket

2 x 1.5 V type C batteries

1 x instruction manual
