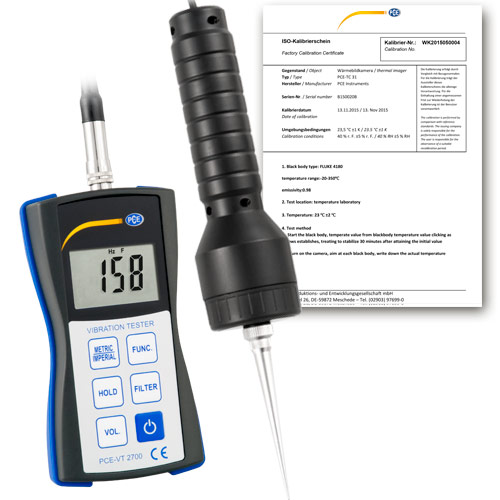

PCE VT 2700S Handheld Accelerometer

Specification

Measurement range acceleration:399.9 m/s² (Peak) / 1311 ft/s² (Peak)

Measurement range velocity:399.9 mm/s (RMS) / 15.75 in/s (RMS)

Measurement range displacement:3.9999 mm (Pk-Pk) or 158.0 mil (Pk-Pk) / 0.15 in (Pk-Pk) or 5.34 oz (Pk-Pk)

Measurement range revolutions:50 ... 99.900 rpm (reading must be multiplied by 10)

Resolution:0.1 m/s² / 0.1 yd/s²; 0.1 mm/s / 0.003 in/s; 1 µm / 3.3814e-14 oz ; 1 rpm

Accuracy:± 5% of reading + 2 digits

Frequency range acceleration:9 Hz ... 1 kHz (in 1 kHz mode) / 9 Hz ... 10 kHz (in 10 kHz mode)

Frequency range velocity:10 Hz ... 1 kHz

Frequency range displacement:10 Hz ... 1 kHz

Display:4-digit LCD, last measured value is shown

Units:Metric or imperial

Interface:RS-232 port

Power supply:3 x 1.5 V AAA LR03 batteries

Battery life:Up to 5 hours of continuous operation

Auto power off:After 5 minutes of inactivity (no key pressed)

Low-battery indication:< 2.1V

Operating temperature:-5 ... 55°C / 23 ... 131°F

Operating relative humidity:95% RH, non-condensing

Enclosure:ABS plastic

Dimensions:142 x 77 x 40 mm / 5.6 x 3.0 x 1.6 in

Weight:0.23 kg / < 1 lb

Dilivery Contents

1 x PCE-VT 2700S handheld accelerometer

1 x 75 mm / 2.95" long pin probe

1 x Probe attachment with 1.5 m / 4.92 ft long cable

1 x Magnetic adapter plate

3 x Batteries

1 x Carrying case

1 x User manual

1 x Factory calibration certificate
