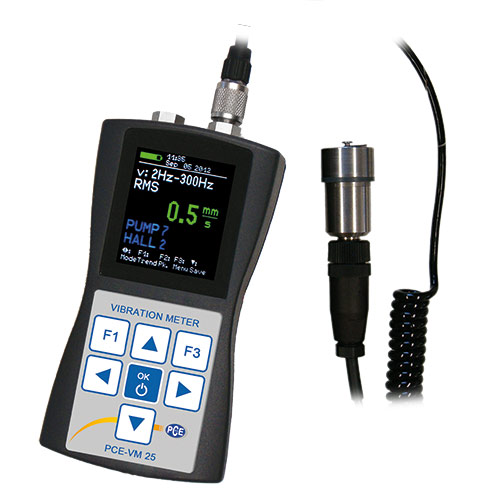

PCE VM 25 Vibration Meter (0.1~240 m/s²)

Specification

Vibration acceleration:

0.1 ... 240 m/s², 0.2 Hz ... 10 kHz,

3 Hz ... 1 kHz, 1 kHz ... 10 kHz

Vibration velocity:

0.1 ... 1000 mm/s,

2 ... 300 Hz, 10 ... 1000 Hz

Vibration displacement:0.01 ... 60 mm, 2 ... 300 Hz

Diagnosis Parameter K(t) for roller bearing:1 ... 10 kHz, with data storage for 1600 initiation values (eff. / peak)

Effective Value Measurement:Yes

Peak Value measurement:Yes

Crest Factor Measurement:Yes

Measurement Accuracy (oscillation):±5%, ±2 digits

Revolution Measurement:1 ... 9999 rpm, optical

Temperature Measurement:-40 ... +125 °C / -40 ... 257 °F ±2 K, infrared

Frequency Analysis:125 lines FFT;

Acceleration / Speed

7 frequency ranges: 2 to 11712 Hz

Output for headphones:3.5mm via adapter VM2xHP,

volume adjustable

Interface:USB

Data storage for measured value:16000 values, opt. computer software to administer measured data and measurement slots

Display:OLED Graphic Display; Colored; 128 x 160 pixels

Voltage Supply:3 x LR03 / HR03 / AAA batteries or NiMH batteries, operation time 8 ... 12h

Operation Temperature:-20 ... +60 °C, <95 % air humidity without condensing

Dimensions:125 mm x 65 mm x 27 mm / 4.9 in x 2.6 in x 1.1 in

Weight:140g / 0.3 lbs with batteries, without sensors

Output:Low Power IEPE

Piezo System:Shear Principle

Nominal Sensitivity:3.5mV/ms-2

Sensitivity for Irrelevant Parameters:<5%

Dimensions:Ø 21 mm / 0.8 in, height 34 mm / 1.3 in (without socket)

Weight:53g / 1.8oz

Operation Temperature:-20 ... +80 °C / -4 ... 176 °F

Sensor Cable:Spiral Cable, Stretched length approx. 1.6 m / 5.2 ft, Ø 4 mm / 0.15 in

VMID recognition of measuring slot:digital, one-time 16-digit hexa decimal number, read-out via sensor foot, enclosure of stainless steel Ø 25 mm, height 15 mm, 45 g, montage: two-components epoxy adhesive

Delivery contents

1 x PCE-VM 25 Vibration Meter

1 x Vibration Meter Sensor with Spiral Cable

1 x VMID Measurement Location

1 x USB cable

1 x Head Phone Adapter

1 x Calibration Certificate

1 x Instruction Manual

1 x Plastic case
