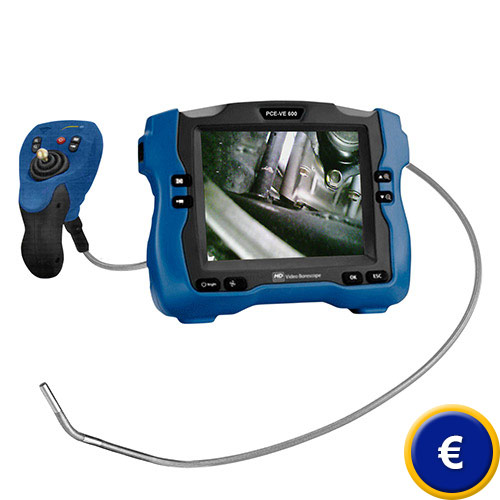

PCE VE 600 Video Endoscope

Technical specifications

Semi-flexible cable: 1000 mm

Cable diameter: 6 mm

Camera head: movable in 4 directions

Display: 7 "LCD (800 x 600)

Optimal viewing distance: 5 ... 15 cm

Max. bending radius of the camera: 320°

Image format: .jpg (640 x 480 / 2048 x 1536)

Video format:

.mp4 (1920 x 1080 / 30/25 fps)

.mp4 (1440 x 1080 / 30/25 fps)

.mp4 (1280 x 720 / 30/25 fps)

.mp4 (640 x 480 / 30 fps)

Zoom and rotation: 8x zoom / 90 ° image rotation

SD card: 2 GB (max. 8GB possible)

Battery: 3.7v lithium battery / 1800mA

Connections: AV out / USB / HDMI

Selectable languages: German, English, Spanish and French

Dimensions: 240 x 160 x 100 mm

Weight: 585 g

Delivery Scope

1 x Wireless 4-way HD endoscope PCE-VE 600 incl. joystick with 4-way optics

1 x 2 GB SD memory card

1 x USB cable

1 x hook and magnet adapter

1 x AV cable

1 x battery pack

1 x power supply

1 x case

1 x operating manual
