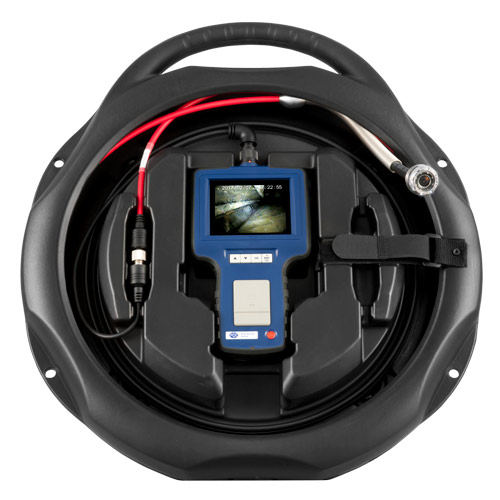

PCE VE 390N Chimney and Drain Inspection Camera

Specifications

Cable diameter:28 mm / 1.11 in

Cable length: 10 m / 32.8 ft

Depth of field: 10 mm … ∞ / 0.4 in to infinity

Field of view:150.8°

Bending radius:90 mm / 3.54 in.

Illumination:8 LEDs

Image sensor:CMOS / 640 x 480

Picture rate:30 / sec.

Display: 88.9 mm / 3.5 in TFT LCD monitor

Interface:Mini USB 1.1 / AV out

Storage options:Image or video

Storage:8 GB memory card (can be increased to 32 GB)

Compression format:MPEG 4

Picture format:JPEG (640 x 480)

Video output format:NTSC / PAL

Video format:ASF (320 x 240)

Operation and storage temperature:-10 ... 60°C / 14 ... 140°F

Voltage supply:Rechargeable 3.7V lithium-ion battery

Dimensions, handheld device:207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in

Weight, incl. carrying case:9.98 kg / 22 lbs

Protection type, camera:IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft

Dilivery Contents

1 x PCE-VE 390N chimney and drain inspection camera

1 x Centering brush

1 x SD card

1 x USB cable

1 x Battery charger

1 x Carrying case

1 x User manual
