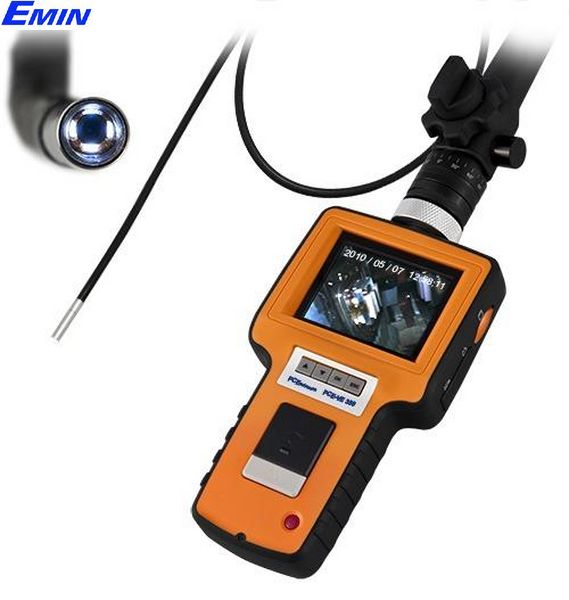

PCE-VE 350 Video borescope

Technical specifications

Flexible cable length

800 mm (with joystick: 900 mm)

Image sensor

CMOS

Resoution / Image sensor (dynamic / static)

320 x 240 / 640 x 480

Image frequency

30 / s

Exposure

automatic

White scale

fixed

Field of view / angle of view

67 °

Distance of view

1,5 ... 10 cm

Ilumination

4LEDs

Cable diameter

6,0 mm

Head

360º addressable head

Curvature radius

90 mm

Display

TFT 3,5"

Interface

Mini-USB 1.1 (AV out / AV in)

Image memory

512 MB memory card SD (it can be increased to 2 GB)

Compression format

MPEG4

Image format

JPEG (640 x 480)

Video output format

NTSC & PAL

Operating / Storage temperature

-10 ... +50 °C

Power

rechargeable Lithium-Ion battery

Weight with carrying case

450 g
