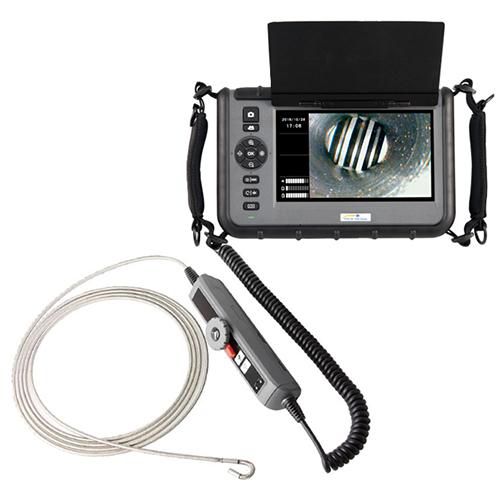

PCE VE 1014N-F Industrial Borescope

Specification

Display: 7" LCD (800 x 480)

Image resolution: 640 x 480 JPEG

Video recording: 640 x 480 MPEG (with sound recording)

Drop test: 1 m / 3.3 ft

Power supply: Li-Ion rechargeable battery

Interface: USB

Image and video storage: on SD card (maximum 32 GB)

AV output: NTSC / PAL

Audio input: built-in microphone

Brightness adjustment: 10-step adjustable on the main unit

Runtime per battery charge: 5 hours

Battery charging time: 3 hours

Charging temperature: 10 ... 40°C / 50 ... 104°F

Operating temperature: 0 ... 60°C / 32 ... 140°F

Storage temperature: 0 ... 60°C / 32 ... 140°F

Protection class: IP57

Dimensions: 240 x 154 x 47 mm / 9.4 x 6 x 1.9 n

Weight: 1.3 kg / 2.9 lb

Cable length: 1.5 m / 4.92 ft

2-way borescope cable:90°

Functions on the control unit of the cable:

Lighting improvements

360° rotation in 90° increments

Change of lighting for mirror use

Camera head locking

Keylock

Lighting: 5 white LEDs on camera head

Camera head length: ca. 13 mm / 0.5 in

Camera head material: stainless steel

Camera head diameter: 4.5 mm / 0.18 in

Resolution: VGA (640 x 480)

Depth of field: 10 ... 60 mm / 0.4 ... 2.4 in

Operating and storage temperature: -20 ... 60°C / -4 ... 140°F

Protecton class: IP67

Video output: NTSC

Viewing angle: 135°

Control unit dimensions: 228 x 35 x 53 mm / 9 x 1.4 x 2.1 in

Weight: ca. 400 g / < 1 lb

Delivery contents

1 x Industrial Borescope PCE-VE 1014N-F

1 x SD memory card (8 GB)

1 x Cleaning kit for camera head

1 x USB cable

1 x Power supply for monitor

1 x Video cable

1 x Robust plastic case

Manual
