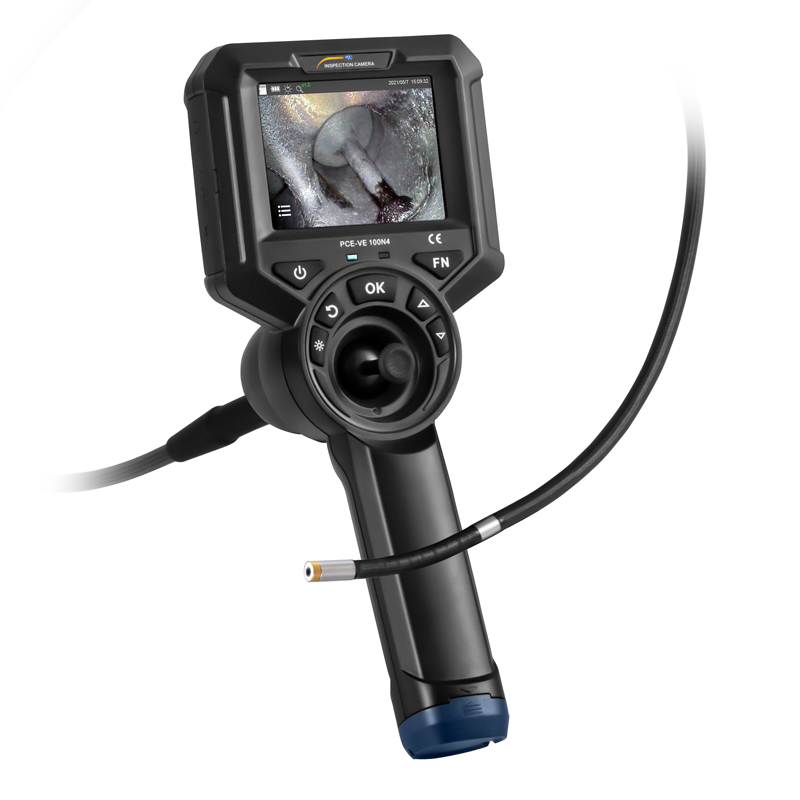

PCE VE 100N4 Videoscope (1m; Ø6mm; 5x; IP67&IP65)

Camera diameter: 6 mm/0.23"

Cable length: 1 m / 3 ft 2"

Camera pixels: 1,000,000

Depth of field: 7 ... 110 mm / 0.27 ... 4.33"

Field of view: 120°

Swivel range: 360°

Illuminance: can be set in five levels up to 25,000 lx

Cable material: Tungsten braided

Bending radius: >220°

Display: 3.5" IPS

Display resolution: 640 x 480

Photo and video format: JPG/MP4

Photo and video resolution: 960 x 720, 1280 x 720

Magnification: 5-times

Protection class: camera cable: IP67; display: IP65

Memory: 16 GB Micro-SD card

Battery power supply: 1x3.7V 3200 mAh 18650 battery

Power consumption: 3.5 W

Operating time: >3 hours

Mains power supply

- primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.35 A

- secondary: 5 V DC, 2 A

Interfaces: Mini-HDMI (image transmission)

Micro-USB connector (charging port)

Storage conditions: -10 ... +63 °C / 14 ... 145 °F, <92 % RH, non-condensing

Operating conditions display*: -10 ... +50 °C / 14 ... 122 °F, <92 % RH, non-condensing

Operating conditions camera*: -10 ... +80 °C / 14 ... 176 °F, <92 % RH, non-condensing

*at temperatures below 0 °C / 32 °F the display must be preheated and the camera head must not be swivelled completely

Dimensions: 277x106x92mm/10.9x4.1x3.6"

Weight: ca. 500g/17.6oz
