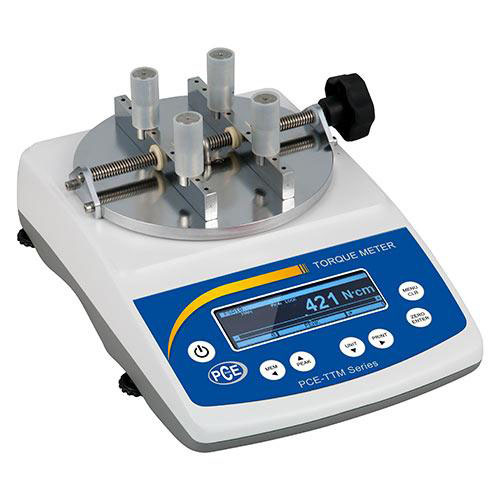

PCE TTM 2 Torque Meter (2 Nm / 200 Ncm / 200 gfm / 20 lbfin)

Specification

Measurement range PCE-TTM 2:2 Nm / 200 Ncm / 200 gfm / 20 lbfin

Resolution PCE-TTM 2:0.001 Nm / 0.1 Ncm / 0.1 gfm / 0.01 lbfin

Accuracy:± 0.5 % F.S

Sampling rate / sampling speedUp to 1,000 Hz adjustable

Measurement direction:left or right rotational direction

Sample size:Ø 20 mm ... Ø 180 mm

Sample holder:rubberized, can be switched without any additional tools

Additional function:

Peak-Hold function (maximum value displayed)

Threshold function (min. / OK / max.)

internal memory (manual or automatic)

Statistics function (graphic or tabular)

GLP protocol printing (printer optional)

multilingual menu navigation (DE / GB / ES / PL)

Internal memory:For a test series of up to 6,400 measurement values at a push of a button or automatic recording of measurement values with configurable parameters.

Measurement unit:Nm / Ncm / kgfm / gfm / lbfin

Overload protection:max. 125 %

Output:RS 232 and USB interface

Software:software for live recording included

Display:LCD graphic display

Operation temperature:0 ... + 50 °C, under 80 % r.F.

Power Supply:12 V / 1.25 A mains adapter or 4 x 1.5 V AA batteries (not included in delivery)

Weight:approx. 4.5 kg

Dimensions:345 x 236 x 160 mm

Delivery contents

1 x screw cap torque meter,

1 x software,

1 x adapter,

1 x instruction manual
